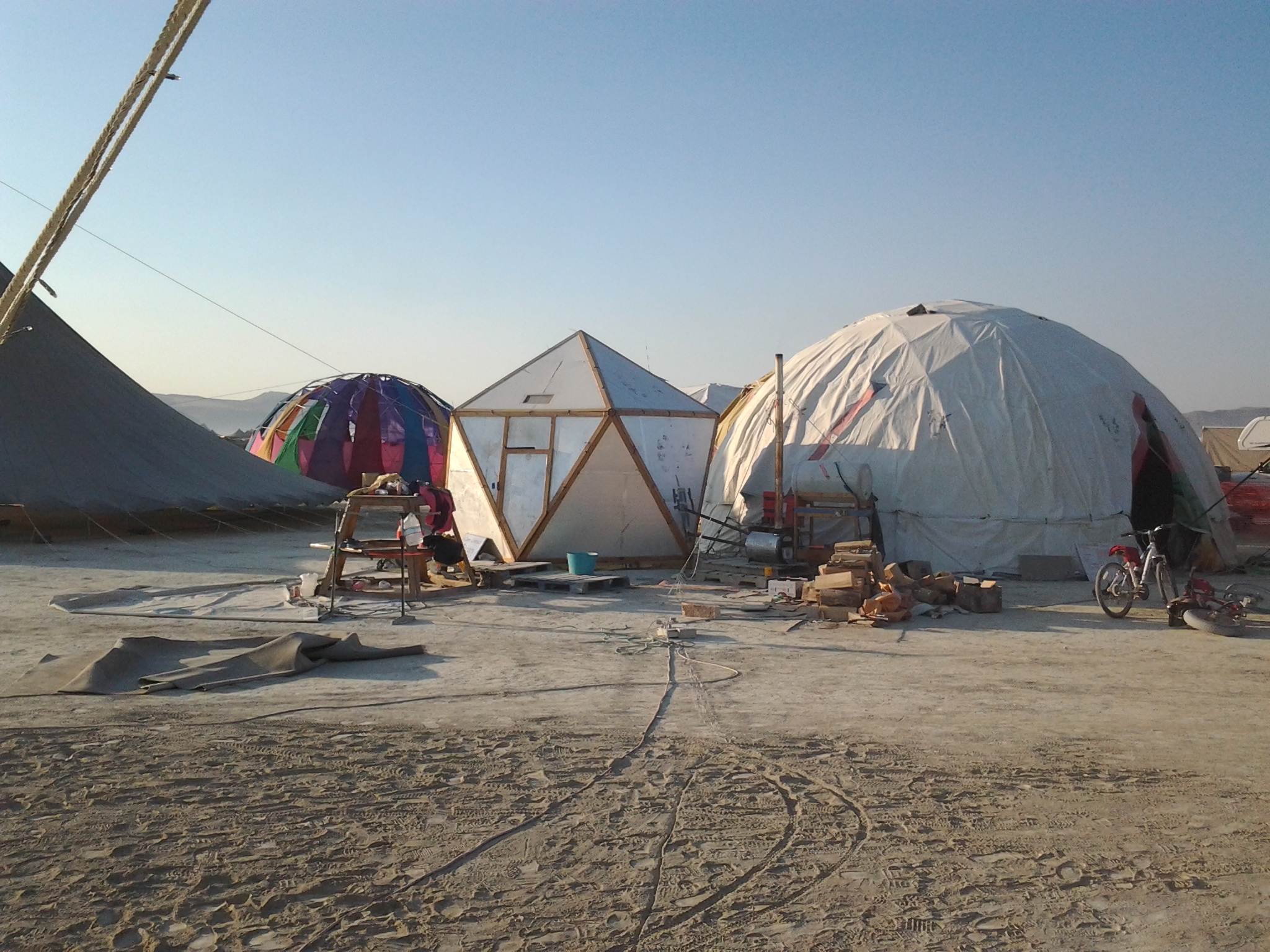

Dome (on right) at Burning Man 2014

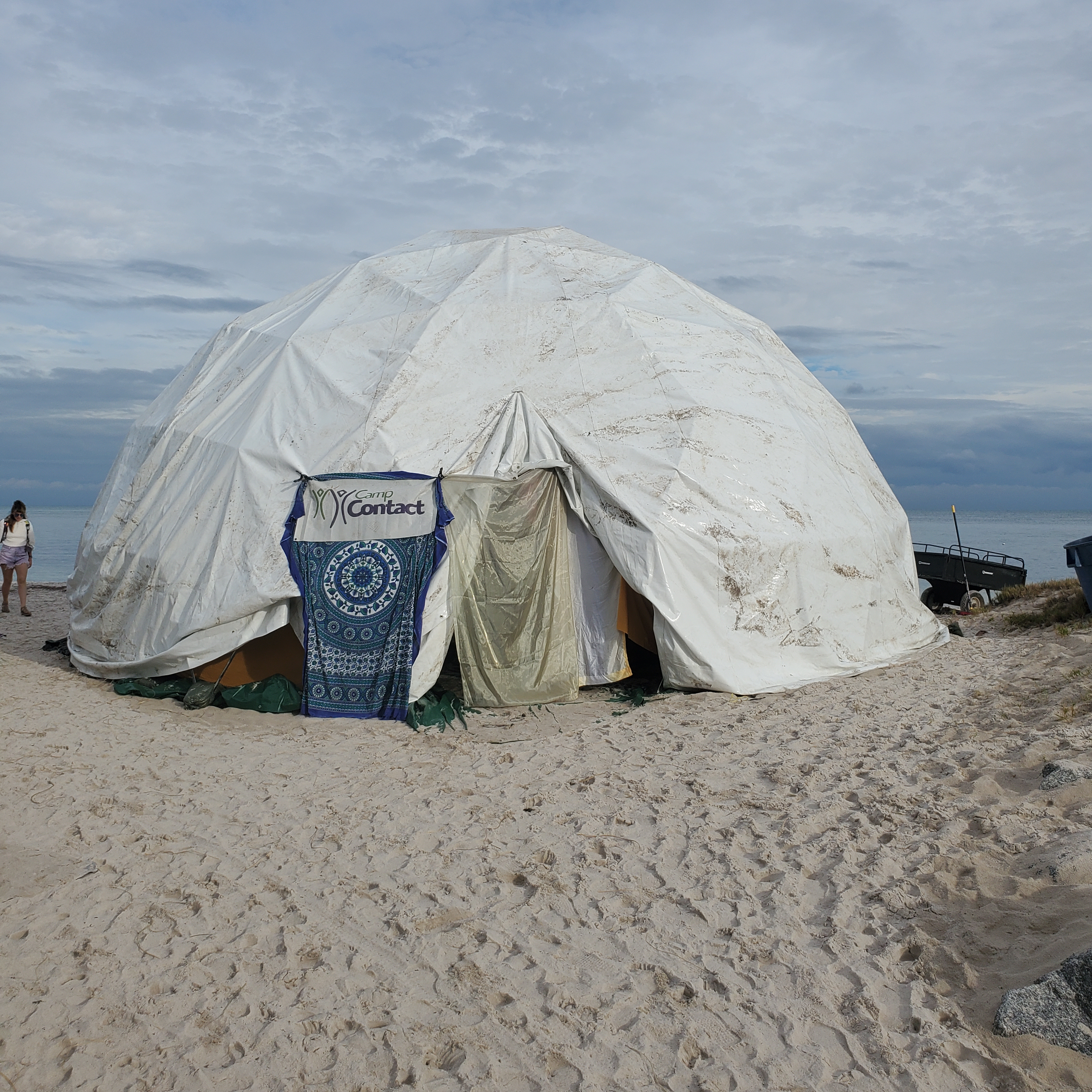

Dome at LoveBurn 2022

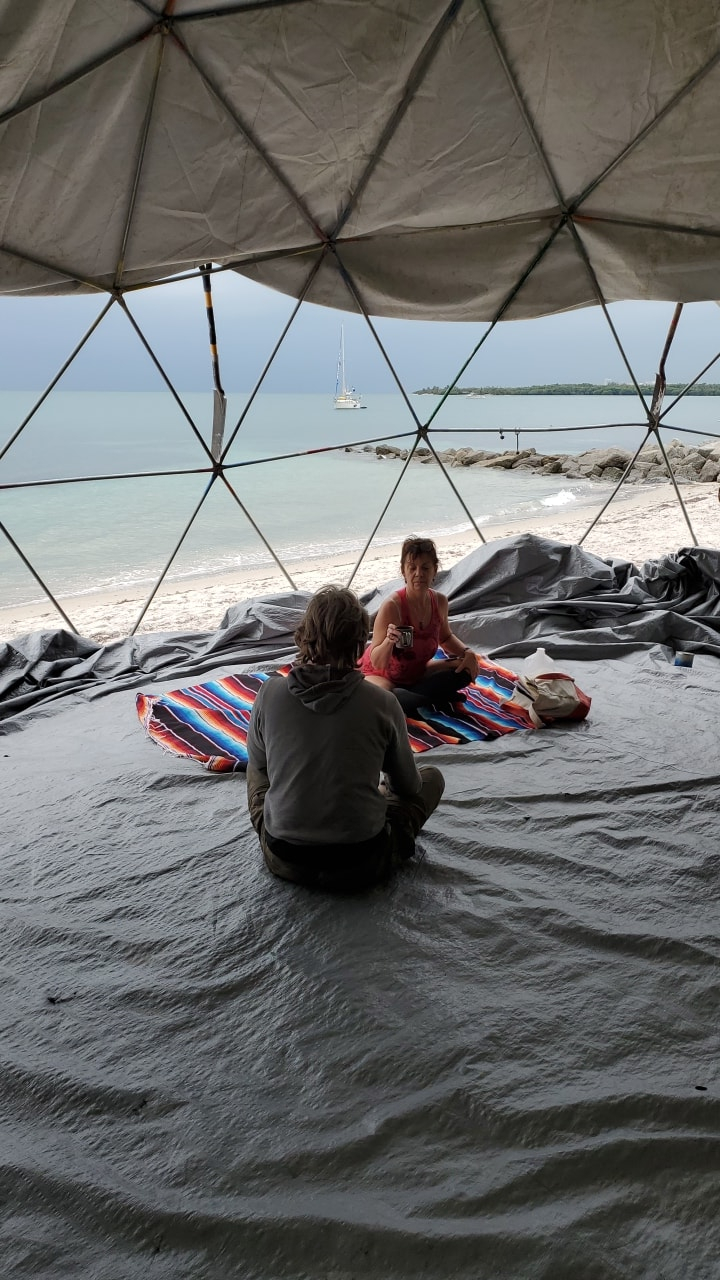

Dome (Interior, with cover lifted for ventilation) at LoveBurn 2022
Specifications: Dome is a 4V dome that is 30', 6" in Diameter and 15' 3" tall. Parts Inventory See more details at Desert Domes

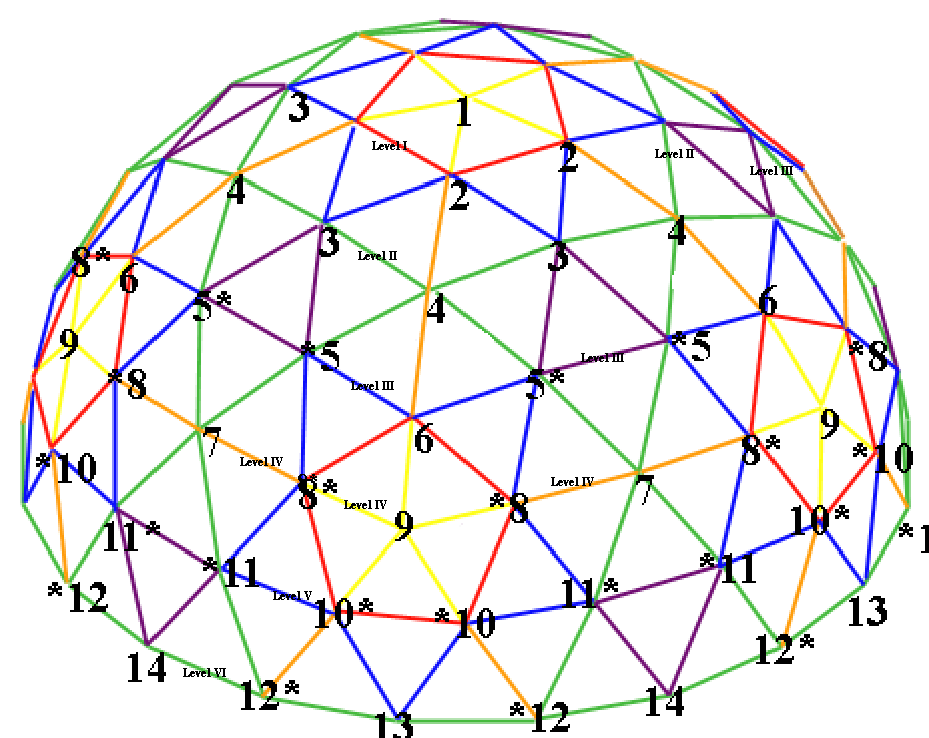

Build Instructions: The dome is assembled, starting from the top, at connection point #1, and coming down until the green struts connect at connection points #12, #13, and #14. Most connection points are done 5 times. The Asterix next to numbers indicates that the connection point has a mirror image of it, and hence, this connection point is done 10 times. The only other exception is connection point #1, at the top, which is only done once. There are two lengths of bolts we use. One bolt is shorter, has threads going across the entire shank, is painted yellow on top, and is used for connections of 4 or 5 struts, which are typically connecting the center of Yellow Stars. The very bottom circumference also uses them as it only has 4 struts for connection points. The other bolt is longer and only has threads on half of the shank, and is used for most connection points, which bring together 6 struts.
Dome at LoveBurn 2022
Dome (Interior, with cover lifted for ventilation) at LoveBurn 2022
Specifications: Dome is a 4V dome that is 30', 6" in Diameter and 15' 3" tall. Parts Inventory See more details at Desert Domes
Build Instructions: The dome is assembled, starting from the top, at connection point #1, and coming down until the green struts connect at connection points #12, #13, and #14. Most connection points are done 5 times. The Asterix next to numbers indicates that the connection point has a mirror image of it, and hence, this connection point is done 10 times. The only other exception is connection point #1, at the top, which is only done once. There are two lengths of bolts we use. One bolt is shorter, has threads going across the entire shank, is painted yellow on top, and is used for connections of 4 or 5 struts, which are typically connecting the center of Yellow Stars. The very bottom circumference also uses them as it only has 4 struts for connection points. The other bolt is longer and only has threads on half of the shank, and is used for most connection points, which bring together 6 struts.
